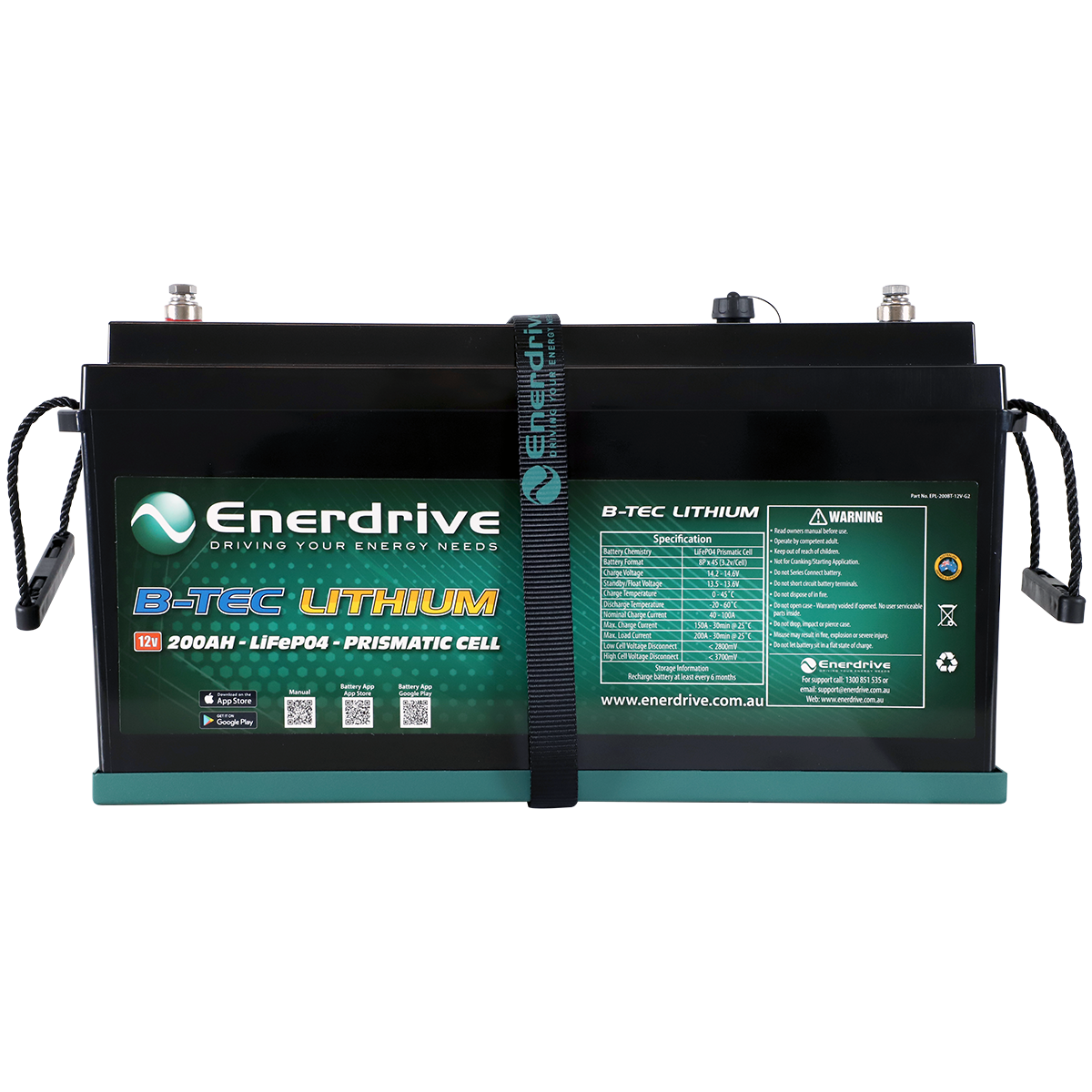

Enerdrive B-TEC 12V 200Ah G2 Lithium Battery

Name: Enerdrive B-TEC 12V 200Ah G2 Lithium Battery
Brand: EC Offroad
SKU: EPL-200BT-12V-G2
Price: 2299.0 AUD
Availability: InStock

$2,299.00 AUD

Sale Sold out

Tax included.

Product variants

Quantity

Enerdrive B-TEC 12V 200Ah G2 Lithium Battery

The ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications.

5 Year Warranty
>2500 Charge Cycles @ 80% DOD
Bluetooth Monitoring via Phone App
Built-In Reset Button making re-starting a flat battery a breeze

Features

Enerdrive | Dometic B-TEC LiFeP04 12v 200Ah G2 Lithium Battery

Available in 12v 100Ah, 125Ah, 200Ah, 300Ah and 400Ah capacities and 24v 150Ah & 36v 100Ah, the ePOWER B-TEC lithium battery is designed and intended for use in deep cycle applications where a single battery is required that meets the amp hour capacity.

Smart Phone Monitoring System

The Enerdrive B-TEC G2 battery incorporates wireless Battery Monitoring Technology. By downloading the Android™ or Apple® app to your smartphone or tablet device, you can monitor the following information;

Battery Capacity
Battery Voltage
Battery Current (Amps)
Battery State of Charge (SOC)
Battery State of Health (SOH)
Battery Status
Individual Cell Voltage
Battery Temperature
Battery Cycles
Battery Alarms
Battery Event Information

Battery Management System

The battery is also equipped with an internal Battery Management System that can monitor and optimise each Prismatic cell within the battery during normal operation. It will protect the battery pack from over charge, over discharge, over temperature & short circuit. The BMS helps to ensure safe and accurate operation of the battery. Please note that a fully discharged battery (BMS is off) requires charging within 14 days to avoid cell damage.

Size & Weight Savings

Lithium v AGM Capacities;

100Ah Lithium = 160Ah AGM
125Ah Lithium = 200Ah AGM
200Ah Lithium = 320Ah AGM
300Ah Lithium = 480Ah AGM

(Based on standard depth of discharge for both Lithium (80%) and AGM (50%).

The Enerdrive B-TEC G2 battery provides 60% more usable power than its equivalent lead acid cousin and being nearly 50% lighter and 30% smaller makes for a superior alternative.

The Enerdrive B-TEC G2 battery is perfect for camper trailers, 4WD’s (AUX battery), caravans, small water craft, low power communication sites or any other application that requires the use of a single deep cycle battery that meets the amp hour capacity.

The New Generation 2 B-TEC

So, How does the New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery measure up against it original predecessor? Let’s have a look.

Dimension	Original	Generation 2
Length	485mm	505mm
Width	170mm	172.5mm
Height	245mm	265mm

The increase in height allows for full 360° connection of the battery cables the make installation easier and more flexible. Also included for free is a metal battery tray and hold down strap to complete the installation process.

The G2 now incorporates a “Built-In Reset Button” making re-starting a flat battery a breeze. No longer do you need to apply a voltage to the battery terminals to wake up the battery. Press the button and within seconds, the battery will come back to life ready to accept a charge source to rejuvenate the battery.

The new G2 also includes a RS485 communications port located on the top of the battery. This port allows for integration onto other CanBus systems for data monitoring and recording.

The New Enerdrive Generation 2 (G2) B-TEC 200Ah Lithium Battery now comes with a 5 year warranty, giving you peace of mind that this product will keep you covered.

With over a decade of researching, designing and testing lithium batteries and the associated charging systems, Enerdrive are at the forefront of lithium battery systems in Australia. Enerdrive are the only Australian company that can supply a fully integrated self-branded energy system to suit your setup.

With thousands of complete systems in operation Australia wide, Enerdrive | Dometic is regarded as the leader in the field of lithium batteries and energy systems for Mobile, Marine and Remote applications.

Please Note; The G2 battery is capable to be paralleled to a second G2 battery. For maximum performance and lifespan of your G2 battery, no more than 4 batteries should be connected together to increase your overall capacity. Overall loads when paralleled should not exceed the current limits of a single battery’s BMS.

The G2 200Ah battery is able to accept a maximum inverter capacity of 2600W only. Exceeding the maximum inverter capacity can damage the BMS Management within the battery.

If you are requiring a battery system larger than the Enerdrive B-TEC G2 battery, please look at the Enerdrive Pro Series Power Pack Systems which can offer multiple parallel and series connections with Active Cell Balancing Protection across the entire pack.

Please note B-TEC batteries must not be installed –
• In vehicle engine bays or in high heat environments, refer to Section 10 – Battery Specifications of the manual.
• In wet areas such as caravan chassis mounts, open ute trays or boat deck areas.
• Inside compartments dedicated to carrying gas.

This product is not suitable to mount anywhere with a possibility of being exposed to the elements. It is an electronic product designed for internal use ONLY.

2023 Standards Update: With some confusion regarding the up coming standards changes and how they will effect battery fitments for future builds including upgrades to existing builds, ENERDRIVE | DOMETIC have created a fitment guide. This guide is specific to our e-LITE and B-TEC range of batteries and has been designed to cover all portions of the battery installation requirements within the new standard. Please note this guide is specific to Enerdrive batteries and does not apply to any other manufacturer.

Specifications

Search:


Nominal Voltage	12.8V	12.8V	12.8V	12.8V	12.8V
Nominal Capacity	100Ah	100Ah	125Ah	200Ah	300Ah
Charge Cycles (DOD – 80% under controlled conditions)	>2500 Cycles	>2500 Cycles	>2500 Cycles	>2500 Cycles	>2500 Cycles
Standard Charge Specification (Lithium profile charger required)
Battery Charge Temperature	0 ̴ 45°C	0 ̴ 45°C	0 ̴ 45°C	0 ̴ 45°C	0 ̴ 45°C
Normal Charge Voltage CV/CC*	14.20 ̴ 14.60V	14.20 ̴ 14.60V	14.20 ̴ 14.60V	14.20 ̴ 14.60V	14.20 ̴ 14.60V
Standby (Float) Voltage	13.50 ̴ 13.80V	13.50 ̴ 13.80V	13.50 ̴ 13.80V	13.50 ̴ 13.80V	13.50 ̴ 13.80V
Maximum Charge Current	80A @ 25˚C for 30mins	60A @ 25°C for 30mins	60A @ 25°C for 30mins	150A @ 25°C for 30mins	190A @ 25°C for 30mins
Recommended Charge Current For Maximum Life, Charge in the lower amperage range	20~50A	20~60A	20~60A	40~100A	60~120A
Standard Discharge Specification
Battery Discharge Temperature	-20 ̴ 60°C	-20 ̴ 60°C	-20 ̴ 60°C	-20 ̴ 60°C	-20 ̴ 60°C
Battery Output Voltage Range	11.00 ̴ 14.60V	11.00 ̴ 14.60V	11.00 ̴ 14.60V	11.00 ̴ 14.60V	11.00 ̴ 14.60V
Maximum Discharge/Pulse Current	100A @ 25˚C ±5˚C for 30 mins	100A @ 25˚C ±5˚C for 30 mins	100A @ 25˚C ±5˚C for 30 mins	200A @ 25˚C ±5˚C for 30 mins	250A @ 25˚C ±5˚C for 15 mins
Pulse Discharge Current	250A for 1.0s	450A for 1.0s	450A for 1.0s	450A for 1.0s	450A for 1.0s
Discharge Cut-off Voltage	<11.20V	<11.20V	<11.20V	<11.20V	<11.20V
Circuit Protection	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.	The battery is supplied with a LiFePO4 Battery Management System BMS that can monitor and optimize each single prismatic cell during charge & discharge, to protect the battery pack from overcharge, over discharge & short circuit. Overall, the BMS helps to ensure safe and accurate operation of the battery.
Over-Charge Protection
Over-charge Protection Per Cell	3.90V ± 0.03V	3.90V ± 0.03V	3.90V ± 0.03V	3.90V ± 0.03V	3.90V ± 0.03V
Over-charge Release Per Cell	3.60V ± 0.05V	3.60V ± 0.05V	3.60V ± 0.05V	3.60V ± 0.05V	3.60V ± 0.05V
Over-charge Release Method	Discharge below release voltage	Discharge below release voltage	Discharge below release voltage	Discharge below release voltage	Discharge below release voltage
Over-Discharge Protection
Over-discharge Protection Per Cell	2.80V ± 0.05V	2.80V ± 0.05V	2.80V ± 0.05V	2.80V ± 0.05V	2.80V ± 0.05V
Over-discharge Release Per Cell	3.20V ± 0.05V	3.20V ± 0.05V	3.20V ± 0.05V	3.20V ± 0.05V	3.20V ± 0.05V
Over-discharge Release Method	Apply Charge/Voltage >12.8V	Apply Charge/Voltage >12.8V	Apply Charge/Voltage >12.8V	Apply Charge/Voltage >12.8V	Apply Charge/Voltage >12.8V
Battery Manual Reset Button	No	Yes	Yes	Yes	Yes
Over Current Protection
Discharge Over Current	110A for 30s – 450A for 1s	110A for 30s – 450A for 1s	110A for 30s – 450A for 1s	220A for 30s – 450A for 1s	280A for 25s – 400A for 3.5s
Protection Reset Time	Approx 10s Auto Release	Approx 10s Auto Release	Approx 10s Auto Release	Approx 10s Auto Release	Approx 10s Auto Release
Over Current Release Method	Disconnect Load	Disconnect Load	Disconnect Load	Disconnect Load	Disconnect Load
Over Temperature Protection
Battery Discharge Over Temperature	Protection to 65°C ± 5°C	Protection to 65°C ± 5°C	Protection to 65°C ± 5°C	Protection to 65°C ± 5°C	Protection to 65°C ± 5°C
	Release at 50°C ± 5°C	Release at 50°C ± 5°C	Release at 50°C ± 5°C	Release at 50°C ± 5°C	Release at 50°C ± 5°C
Battery Charge Over Temperature	Protection to 55°C ± 5°C	Protection to 55°C ± 5°C	Protection to 55°C ± 5°C	Protection to 55°C ± 5°C	Protection to 55°C ± 5°C
	Release at 45°C ± 5°C	Release at 45°C ± 5°C	Release at 45°C ± 5°C	Release at 45°C ± 5°C	Release at 45°C ± 5°C
Short Circuit Protection	Auto release after 5s	Auto release after 5s	Auto release after 5s	Auto release after 5s	Auto release after 5s
Dimensions
Length	551mm	318mm	318mm	505mm	521mm
Width	110mm	165mm	165mm	172.5mm	280mm
Height	240mm	232mm	232mm	265mm	238mm
Weight	Approx 12.5 Kg	Approx 12.6kg	Approx 15.5 Kg	Approx 25.0 Kg	Approx 38.2 Kg
Case Construction	High Impact ABS Plastic	High Impact ABS Plastic	High Impact ABS Plastic	High Impact ABS Plastic	High Impact ABS Plastic
Storage Information
Temperature & Humidity Range	<30 days -20°C ̴ 60°C, 5 ̴ 75% RH	<30 days -20°C ̴ 60°C, 5 ̴ 75% RH	<30 days -20°C ̴ 60°C, 5 ̴ 75% RH	<30 days -20°C ̴ 60°C, 5 ̴ 75% RH	<30 days -20°C ̴ 60°C, 5 ̴ 75% RH
	>90 days -10°C ̴ 45°C, 5 ̴ 75% RH	>90 days -10°C ̴ 45°C, 5 ̴ 75% RH	>90 days -10°C ̴ 45°C, 5 ̴ 75% RH	>90 days -10°C ̴ 45°C, 5 ̴ 75% RH	>90 days -10°C ̴ 45°C, 5 ̴ 75% RH
Warranty	5 Years	5 Years	5 Years	5 Years	5 Years

Showing 1 to 45 of 45 entries

Note: Specifications subject to change without notice.

Charge Cycles Disclaimer:

The information provided regarding the life cycles of Enerdrive | Dometic lithium batteries is based on laboratory testing conducted under controlled conditions. These tests were carried out at a consistent temperature of 25°C, with discharge and charge rates set at 1C (1 x Capacity of battery).

Under these specific conditions, it has been calculated that our lithium batteries can achieve over 2500 cycles with approximately 80% of original capacity remaining. However, it’s essential to note that actual performance may vary depending on various factors, including but not limited to, installation environment, temperature fluctuations, and variations in discharge and charge rates.

It is recommended to avoid excessive discharges and charge cycles and to maintain a discharge and charge rate around 0.5C (0.5 x Capacity of battery) for optimal battery longevity. Doing so may result in a significantly higher cycle count.

Please be aware that the numbers provided are based on cell-level testing and may not directly reflect the performance of your specific battery installation. As such, we advise users to consider their individual circumstances when assessing the expected lifespan of their batteries.

Even in the scenario of reaching 2500 cycles, it’s important to understand that the lifespan of the batteries can extend beyond this figure. For instance, if batteries were fully discharged daily, a lifespan of over 6.8 years could still be expected. If you don’t normally take the battery under normal use below 30% SOC, then you could find that the battery will continue to meet your needs for many cycles to come.

For further guidance on maximising the performance and longevity of Enerdrive | Dometic lithium batteries, please consult our technical support team or refer to the user manual.
