Rear SumoSprings to suit Isuzu Dmax / Toyota Hilux

Rear SumoSprings are a maintenance-free suspension enhancement built to create a better journey. Handmade from micro-cellular polyurethane, they are designed to reduce rear-end sag and increase load carrying ability while decreasing vibration, stabilising sway, and softening harsh rebounds.

Corrugated and bumpy roads? Throwing a bunch of weight in the back? Hooking up the caravan? No longer a problem with these Rear SumoSprings installed.

These replace the factory bump stops to give additional load support.

The Load Ratings are to demonstrate the loaded capacity when compressed at 50%.

The SumoSprings should not be compressed past 70% of their original height in order to keep full memory rebound.

Load Ratings & Colour:

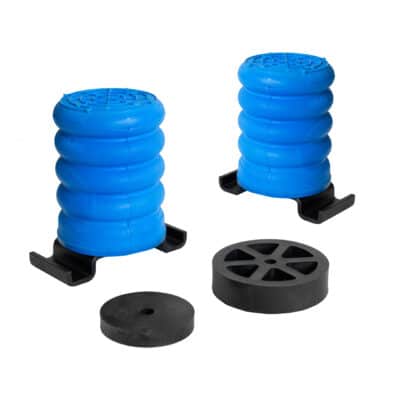

• 630kg Capacity at 50% Compression - Light Blue. Do not exceed 70%.

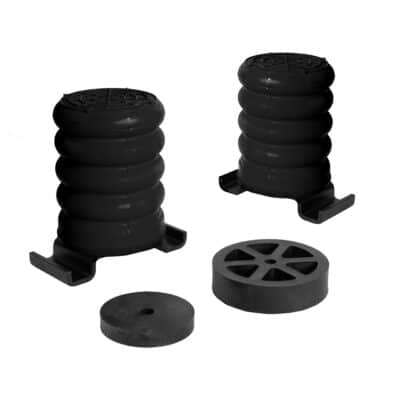

• 810kg Capacity at 50% Compression - Black. Do not exceed 65%.

This is designed to suit:

Isuzu

• 2013 - Present Isuzu D-Max

Toyota

• 2016 - Present Toyota Hilux


Installation

View / Download the Installation Instructions

Installation Difficulty 2/5 - Time: 30 Minutes
